DEVELOPMENT BOARDS FOR ARDUINO

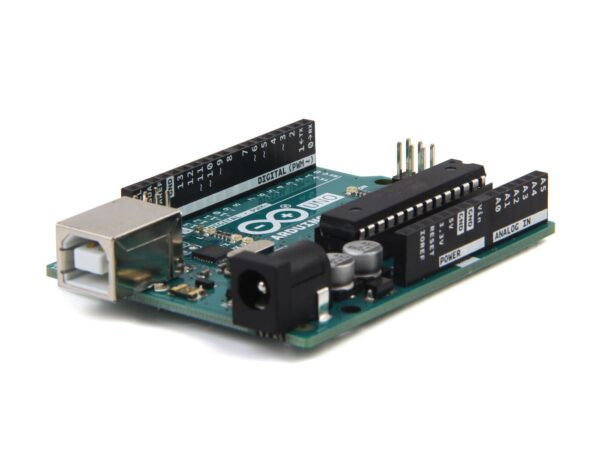

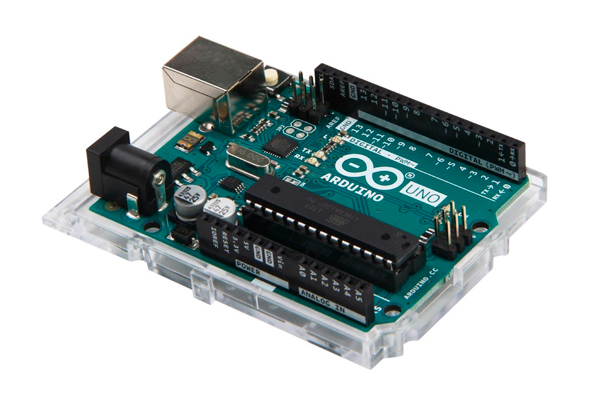

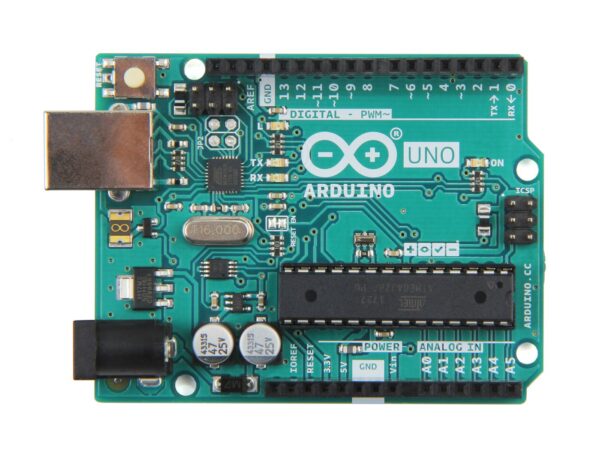

Arduino Uno Rev3
The Arduino Uno Rev 3 is a microcontroller board based on the ATmega328, an 8-bit microcontroller with 32KB of Flash memory and 2KB of RAM. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header and a reset button.
Arduino Uno is the ideal board for getting started with electronics through fun and engaging hands-on projects. This board is your entry to the unique Arduino experience: great for learning the basics of how sensors and actuators work, and an essential tool for your rapid prototyping needs. Arduino Uno Rev3 is the most used and documented board in the Arduino family.
- Dimensions: 80mmx60mmx25mm
- Weight: G. W. 50g
- Battery: Exclude
- Microcontroller: ATmega328P
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limit): 6-20V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- Analog Input Pins: 6
- DC Current per I/O Pin: 20 mA
- DC Current for 3.3v Pin: 50 mA
- Flash Memory: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
- SRAM: 2 KB (ATmega328P)
- EEPROM: 1 KB (ATmega328P)
- Clock Speed: 16 MHz
- LED_BUILTIN: 13

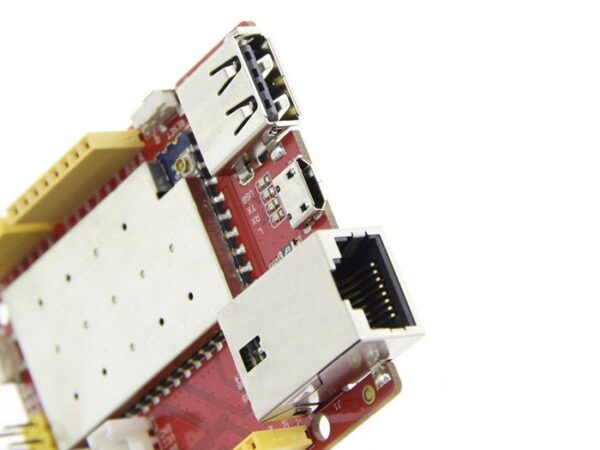

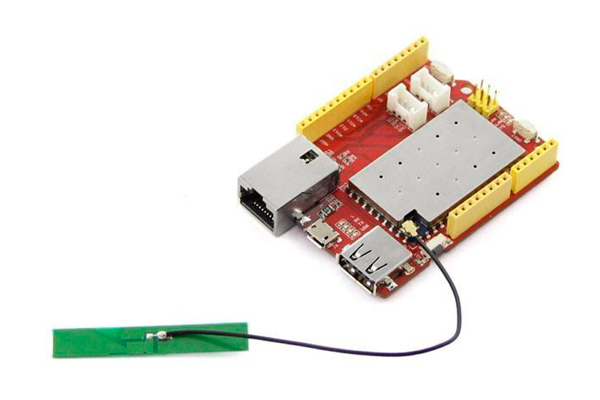

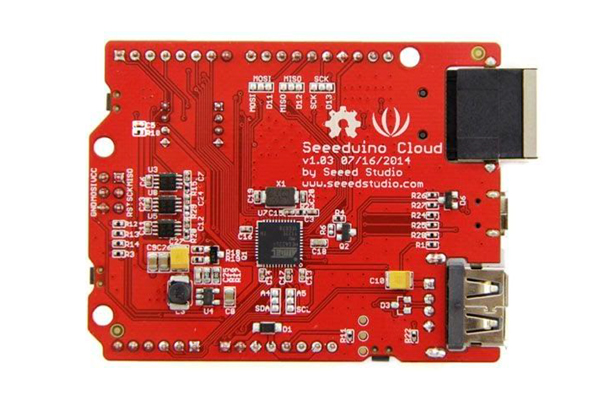

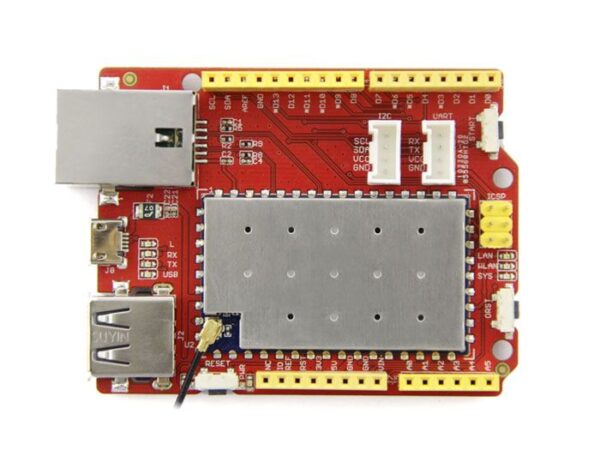

Seeeduino Cloud - Arduino Yun compatible openWRT controller
Seeeduino Cloud is a microcontroller board based on Dragino WiFi IoT module HE and ATmega32u4. HE is a high performance, low cost 150M, 2.4G WiFi module which means “core” in Chinese and with an Open Source OpenWrt system inside. Seeeduino Cloud is also an Arduino compatible board, 100% compatible with Grove and Arduino’s shields and IDEs (Arduino IDE 1.5.3 and later).
Seeeduino Cloud has built-in Ethernet and WiFi support, a USB-A port which makes it very suitable for those prototype designs that need network connection and mass storage. It is also a good idea to make Seeeduino Cloud to an IoT gateway.
-
-
- Dimensions: 116mm x 76mm x 26mm
- Weight: G. W. 53g
- Battery: Exclude
-
- CPU: ATHEROS AR9331
-
-
- Clock Speed: 400MHz
-
- RAM: 64MB
- Flash: 16MB
- OS: Open Source OpenWrt
-
-
- Interfaces: 2 x RJ45, 1 x USB Host, 1 x UART, 14 multiplex GPIOs
- Power: 3.3V power input
-
- WiFi: Support 150M 2.4GHz WiFi, 802.11 b/g/n
- Microcontroller: ATmega 32u4
-
- Flash Memory: 32 KB
- SRAM: 2.5 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- Digital I/O Pins: 20
- PWM Channels: 7
Analog Input Channels: 12
